Ductile Iron, also known as "Nodular Iron" or "Spheroidal Graphite Iron," is a type of cast iron that has gained significant attention due to its superior mechanical properties compared to traditional gray iron. The production of ductile iron relies heavily on the use of nodularizing agents, which are essential for the formation of spheroidal graphite. The choice of nodularizing agent is crucial and should be tailored to the specific production conditions of each foundry. This article will explore the elements that influence nodularization and the role of various nodularizing agents in the production of ductile iron.

Elements Influencing Nodularization

1. Magnesium (Mg)

   Magnesium is a key element in the nodularization process. It has a high vapor pressure in molten iron, which can cause the iron to boil when magnesium is added. The atomic weight and density of magnesium are lower than that of iron, with a melting point of 650°C and a boiling point of 1108°C. At the temperatures used for iron treatment, the vapor pressure of magnesium is substantial, leading to vigorous stirring of the molten iron. Additionally, magnesium has a strong affinity for sulfur and oxygen, forming magnesium oxide and magnesium sulfide with high melting points and densities significantly lower than iron, facilitating their separation from the molten iron. This results in a reduction of oxygen and sulfur content in the treated iron. Furthermore, during the solidification of the iron, magnesium tends to segregate towards graphite, promoting the formation of spheroidal graphite.




2. Rare Earth Elements (REEs)

   The presence of rare earth elements significantly affects the nodularization of graphite. Light rare earth elements can result in a less rounded graphite structure compared to magnesium-treated ductile iron, and may lead to the formation of fragmented graphite. In contrast, heavy rare earth elements can produce well-formed spherical graphite.




3. Calcium (Ca)

   Calcium has a low solubility in molten iron and exhibits an even stronger affinity for sulfur and oxygen compared to magnesium, making it an effective desulfurizing and deoxidizing agent.




Common Nodularizing Agents

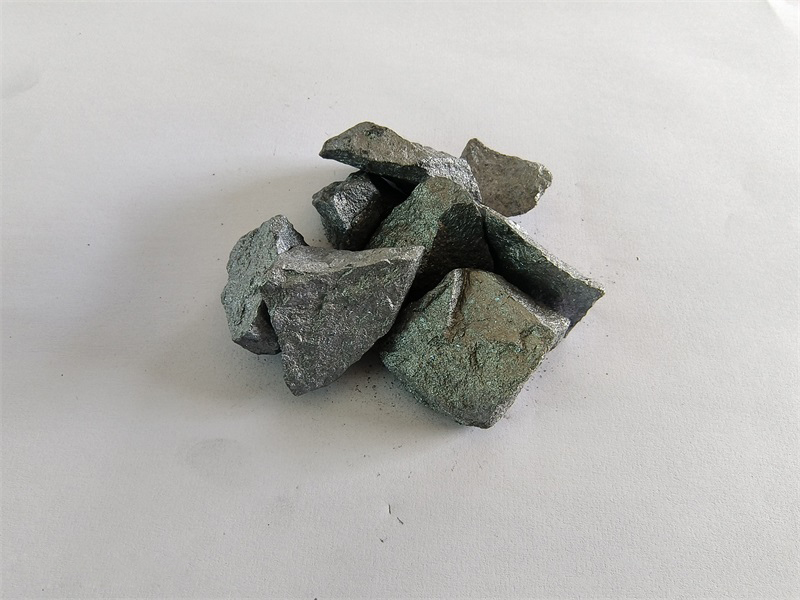

In China, the most widely used and substantial nodularizing agent is the rare earth magnesium (REM) series alloy. These agents combine the advantages and disadvantages of various nodularizing elements, creating a production technology path for ductile iron manufacturing that is tailored to the national conditions.

The Role of Nodularizing Agents

• Magnesium-Based Agents: These agents are known for their ability to create a turbulent environment in the molten iron, which is beneficial for the uniform distribution of magnesium throughout the iron. The reaction of magnesium with sulfur and oxygen leads to the formation of compounds that are easily removed from the iron, reducing the impurities that can hinder the formation of spheroidal graphite.

• Rare Earth Elements: The use of rare earth elements, particularly in the form of REM alloys, has been shown to improve the roundness and size distribution of graphite nodules. The specific type of rare earth elements used can influence the final mechanical properties of the ductile iron.


• Calcium-Based Agents: Calcium-based nodularizing agents are particularly effective in environments where desulfurization and deoxidation are critical. The strong affinity of calcium for sulfur and oxygen makes it an excellent choice for improving the purity of the molten iron.


Conclusion

The production of ductile iron is intricately linked to the use of nodularizing agents. The selection of the appropriate agent is influenced by various factors, including the composition of the molten iron, the desired mechanical properties of the final product, and the specific production conditions of the foundry. Magnesium, rare earth elements, and calcium are all crucial elements in the nodularization process, each playing a unique role in the formation of spheroidal graphite. By understanding the properties and interactions of these elements, foundries can optimize their production processes to manufacture high-quality ductile iron with enhanced mechanical properties.
